Flatbeds

XP Series: XP55, XP65, XP75

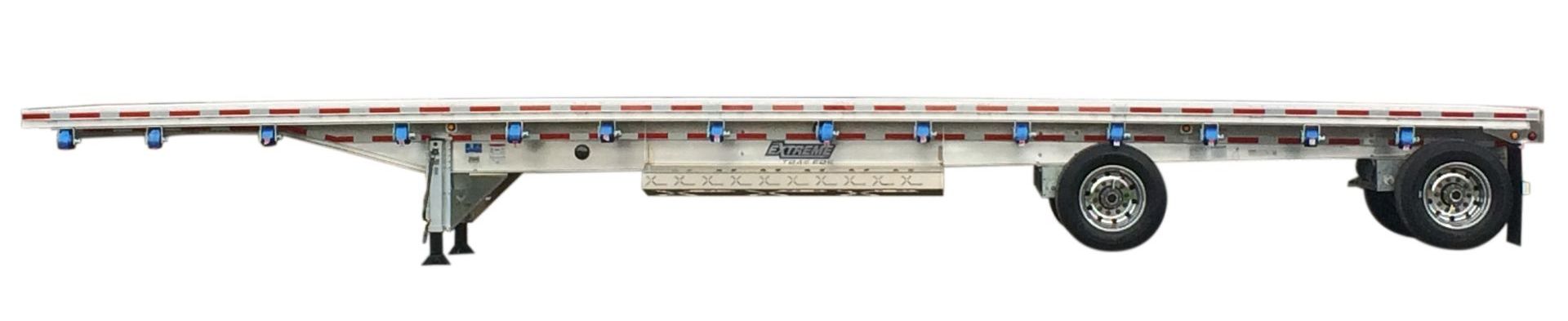

Flatbeds

Industry Best Tare Weight. Haul More Freight

When it comes to knowing what Fleets, Trucking Companies, Owner Operators, and Drivers have known all along, that tare weight matters, we’ve got you covered. We made it our goal to innovate Extreme Trailer’s patent-pending platform trailers to significantly eliminate weight. Featuring an industry best tare weight reduction of 1,000 lbs.to 1,800 lbs., you can haul more freight, not more trailer weight. The XP series has 35%-50% stronger decking and when you add up reduced tare weight, reduced maintenance, reduced downtime, and better back hauls, you know it’s more profit to your bottom line.

XP55 The Original

With its industry best tare weight and patent-pending design, this all aluminum beauty is built to last. When you add up the XP55 trailer’s reduced tare weight, reduced maintenance, reduced downtime, and better back-haul opportunities, you can count on more profit in every haul. Rated to handle loads from 55,000 lbs. in a 4ft. area, 60,000 lbs. in a 10ft. area, and a GVWR up to 100,000 lbs. the XP55 is a great value for most flatbed hauls.

XP65 When Flexibility Matters

Designed with all the features and benefits of the XP55, the XP65 meets the needs of applications requiring higher concentrated load ratings at industry best tare weights. It handles loads up to 65,000 lbs. in a 4ft. area, 75,000 lbs. in a 10ft. area and a GVWR up to 110,000 lbs.

XP75 When Nothing but Heavy Duty will Do

Our XP75 is light on tare weight, heavy on payload and
offers one of the highest concentrated load ratings in an aluminum flatbed. Handling loads from 75,000 lbs. in a 4ft. area, 85,000 lbs. in a 10ft. area, and a GVWR up to 120,000 lbs. You can’t go wrong with the XP75  - an ideal trailer for many applications.

Exceptional Quality, Outstanding Value

All Extreme Trailers are manufactured in our fully equipped facility in Northeast Ohio. Each quality product we manufacture is backed by our promise of unmatched service and driven by an experienced, talented and dedicated, staff
of industry professionals.



XP55 Platform Trailer Specifications

Features Standard Details Options
Length

45ft
48ft
53ft

28 ft. *
32 ft. *
42 ft.
49 ft.
51 ft.

Main Beam

2-piece welded, 26” deep main beam

Width

102"

96"

Capacity

55,000 lbs. rating in 4 ft.**
60,000 lbs. rating in 10 ft.**
100,000 lbs. GVWR

Neck Transition

11” deep

8” deep with reinforcement

Floor

Patent design 12” decking with 2 nailers

“CRT” Crush Resistant TechnologyTM patent design, all aluminum
Patent design 12” decking with 3-wood nailers
Multi-position J-Track (up to 5 locations, not including outer rails)
All wood floor

Crossmembers

C style 18” on center

22” And 14” on center/ coil packs for concentrated loads

Side Rail

J-Track, with spools pockets and rub rail

Chain tie with spools pockets and rub rail

Suspension

AANT23k Hendrickson Intraax/ with HXL5
(5-year wheel end warranty)

AANT23k Hendrickson Intraax/ with HXL7 ***
(7-year wheel end warranty)
AAT25k Hendrickson Intraax/ with HXL5 ***
(5-year wheel end warranty)
AAT25k Hendrickson Intraax/ with HXL7 ***
(7-year wheel end warranty)

Suspension Configurations

122” Spread

Tandem 52” and 60” Tri-axle 52”-52”
Front axle slide; two locations
Rear axle slide; three locations, legal for California, Canadian, and 122” spread
Tandem axle slide

Kingpin

Location of 30” with aluminum coupler plate

Location of 18” with aluminum coupler plate ****
Location of 24” with aluminum coupler plate ****
Location of 36” with aluminum coupler plate ****
Fina-Lub liner (bolt-on)

XP55 Platform Trailer Specifications

Features Standard Details Options
Brake System

Meritor 4S/2M

Meritor RSS
Bendix ABS 4S/2M

Landing Gear

Jost AX150 (10 year warranty)

Jost A450 (10 year warranty)
Holland Mark V

Lighting and Lighting Harness

Grote UBS harness with 5 markers (including mid-turn marker combo), rear light includes, 3-STT, 3-ICC markers, 3-STT

Grote UBS harness with 9 markers (including mid-turn marker combo), rear light includes, 3-STT, 3-ICC markers, 3-STT
Custom lighting available upon request

Tires

Cooper RM272 (available in 22.5 and 24.5 options)

Michelin (available in 22.5 and 24.5 options)
Continental (available in 22.5 and 24.5 options)
Yokohama (available in 22.5 and 24.5 options)
Goodyear (available in 22.5 and 24.5 options)

Additional Features

Removable front and rear access panels
Bolt on bumper
Patent pending interior cross frame members
Air and electric lines; separated for ease of maintenance

Winch track, road side or road and curb side
Winches and straps
4-Post enclosed bolt on rear bumper
Tool boxes
Dunnage rack
Auxiliary power cords with 7-way ISO plug or 4 pin plug
Lift axle with manual and/or electric controls
Dual air and electric (front and between land- ing gear)
Rear axle dump
Log pockets
Over load lights
Deck pockets (coil pocket)

Warranty

5-year Limited (All purchased components are covered by original manufacture)

*

B-Train and A-Train applications

**

Capacity based on 48 ft. length with 30" kingpin setting and 122" suspension spacing. Capacities will change by changing con guration.

***

Disc brakes available

****

Coupler plate available in 5/16” or 3/8” galvanized

XP65 Platform Trailer Specifications

Features Standard Details Options
Length

45 ft.
48 ft.
53 ft.

28 ft. *
32 ft. *
42 ft.
49 ft.
5 ft.

Main Beam

2-Piece welded, 26” deep main beam

Width

102"

96"

Capacity

65,000 lbs. rating in 4 ft.**
75,000 lbs. rating in 10 ft.**
110,000 lbs. GVWR

Neck Transition

11” deep

8” deep with reinforcement

Floor

Patent design 12” decking with 2 nailers

“CRT” Crush Resistant TechnologyTMpatent design, all aluminum
Patent design 12” decking with 3-wood nailers
Multi-position J-Track (up to 5 locations, not including outer rails)
All wood floor

Crossmembers

C style 18” on center

22” And 14” on center/ coil packs for concentrated loads

Side Rail

J-Track, with spools pockets and rub rail

Chain tie, with spools pockets and rub rail

Suspension

AANT23k Hendrickson Intraax/ with HXL5
(5-year wheel end warranty)

AANT23k Hendrickson Intraax/ with HXL7 ***
(7-year wheel end warranty)
AAT25k Hendrickson Intraax/ with HXL5 ***
(5-year wheel end warranty)
AAT25k Hendrickson Intraax/ with HXL7 ***
(7-year wheel end warranty)
AAT30k Hendrickson Intraax/ with HXL5 ***
(5-year wheel end warranty)
AAT30k Hendrickson Intraax/ with HXL7 ***
(7-year wheel end warranty)

Suspension Configurations

122” Spread

Tandem 52” and 60”
Tri-axle 52”-52”
Front axle slide; two locations
Rear axle slide; three locations, legal for California, Canadian, and 122” spread
Tandem axle slide
Multi-axle con gurations (quad axle through eight axle con gurations)

Kingpin

Location of 30” with aluminum coupler plate

Location of 18” with aluminum coupler plate ****
Location of 24” with aluminum coupler plate ****
Location of 36” with aluminum coupler plate ****
Fina-Lub liner (bolt-on)

XP65 Platform Trailer Specifications

Features Standard Details Options
Brake System

Meritor 4S/2M

Meritor RSS
Bendix ABS 4S/2M

Landing Gear

Jost AX150 (10 year warranty)

Jost A450 (10 year warranty)
Holland Mark V

Lighting and Lighting Harness

Grote UBS harness with 5 markers (including mid-turn marker combo), rear light includes, 3-STT, 3-ICC markers, 3-STT

Grote UBS harness with 9 markers (including mid-turn marker combo), rear light includes, 3-STT, 3-ICC markers, 3-STT
Custom lighting available upon request

Tires

Cooper RM272 (available in 22.5 and 24.5 options)

Michelin (available in 22.5 and 24.5 options)
Continental (available in 22.5 and 24.5 options)
Yokohama (available in 22.5 and 24.5 options)
Goodyear (available in 22.5 and 24.5 options)

Additional Features

Removable front and rear access panels
Bolt on bumper
Patent pending interior cross frame members
Air and electric lines; separated for ease of maintenance

Winch track, road side or road and curb side
Winches and straps
4-Post enclosed bolt on rear bumper
Tool boxes
Dunnage rack
Auxiliary power cords with 7-way ISO plug or 4 pin plug
Lift axle with manual and/or electric controls
Dual air and electric (front and between landing gear)
Rear axle dump
Log pockets
Over load lights
Deck pockets (coil pocket)

Warranty

5-year limited (all purchased components are cover by original manufacture)

*

B-Train and A-Train applications

**

Capacity based on 48 ft. length with 30" kingpin setting and 122" suspension spacing. Capacities will change by changing con guration.

***

Disc brakes available

****

Coupler plate available in 5/16” or 3/8” galvanized

XP75 Platform Trailer Specifications

Features Standard Details Options
Length

45 ft.
48 ft.
53 ft.

28 ft. *
32 ft. *
42 ft.
49 ft.
51 ft.

Main Beam

2-piece welded, 28" deep main beam

Width

102"

96”

Capacity

75,000 lbs. rating in 4 ft.**
85,000 lbs. rating in 10 ft.**
120,000 lbs. GVWR

Neck Transition

13” deep

8” deep with reinforcement
11” deep with reinforcement

Floor

Patent design 12” decking with 2 nailers

“CRT” Crush Resistant TechnologyTMpatent design, all aluminum
Patent design 12” decking with 3-wood nailers
Multi-position J-Track (up to 5 locations, not including outer rails)
All wood floor

Crossmembers

C Style 18” on center

22” and 14” on center/ coil packs for concentrated loads

Side Rail

J-Track, with spools pockets and rub rail

Chain tie, with spools pockets and rub rail

Suspension

AAT25k Hendrickson Intraax/with HXL5 ***
(5-year wheel end warranty)

AAT25k Hendrickson Intraax/ with HXL5 ***
(5-year wheel end warranty)
AAT25k Hendrickson Intraax/ with HXL7 ***
(7-year wheel end warranty)
AAT30k Hendrickson Intraax/ with HXL5 ***
(5-year wheel end warranty)
AAT30k Hendrickson Intraax/ with HXL7 ***
(7-year wheel end warranty)

Suspension Configurations

122” Spread

Tandem 52” and 60”
Tri-axle 52”-52”
Front axle slide; two locations
Rear axle slide; three locations, legal for California, Canadian, and 122” spread
Tandem axle slide
Multi-axle con gurations (quad axle through eight axle con gurations)

Kingpin

Location of 30” with 5/16 galvanized coupler plate

Location of 18” with 5/16 galvanized coupler plate ****
Location of 24” with 5/16 galvanized coupler plate ****
Location of 36” with 5/16 galvanized coupler plate ****
Fina-Lub liner (bolt-on)

XP75 Platform Trailer Specifications

Features Standard Details Options
Brake System

Meritor 4S/2M

Meritor RSS
Bendix ABS 4S/2M

Landing Gear

Jost AX150 (10 year warranty)

Jost A450 (10 year warranty) Holland Mark V

Lighting and Lighting Harness

Grote UBS harness with 5 markers (including mid-turn marker combo), rear light includes, 3-STT, 3-ICC markers, 3-STT

Grote UBS harness with 9 markers (including mid-turn marker combo), rear light includes, 3-STT, 3-ICC markers, 3-STT
Custom lighting available upon request

Tires

Cooper RM272 (Available in 22.5 and 24.5 options)

Michelin (available in 22.5 and 24.5 options)
Continental (available in 22.5 and 24.5 options)
Yokohama (available in 22.5 and 24.5 options)
Goodyear (available in 22.5 and 24.5 options)

Additional Features

Removable front and rear access panels
Bolt on bumper
Patent pending interior cross frame members
Air and electric lines; separated for ease of maintenance

Winch track, road side or road and curb side
Winches and straps
4-Post enclosed bolt on rear bumper
Tool boxes
Dunnage rack
Auxiliary power cords with 7-way ISO plug or 4 pin plug
Lift axle with manual and/or electric controls
Dual air and electric (front and between landing gear)
Rear axle dump
Log pockets
Over load lights
Deck pockets (coil pocket)

Warranty

5-year limited (all purchased components are cover by original manufacture)

*

B-Train and A-Train applications

**

Capacity based on 48 ft. length with 30" kingpin setting and 122" suspension spacing. Capacities will change by changing con guration.

***

Disc brakes available

****

Coupler plate available in 3/8” galvanized
